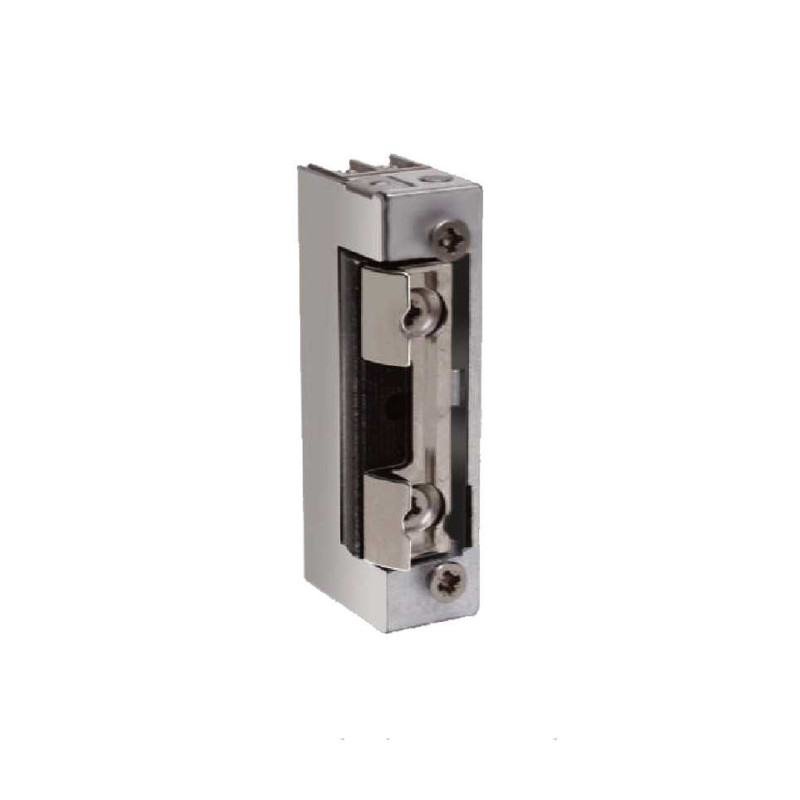

ELECTRIC STRIKE 1428RFW 12-24VAC/DC LOW CONSUMPTION, RELEASING LEVER, CONTINUOUS WORK AT 12V DC
- Radial, with special construction for front plate with special latch guide system, opening at minimal swing
- Reversible (left/right)
- Symmetrical

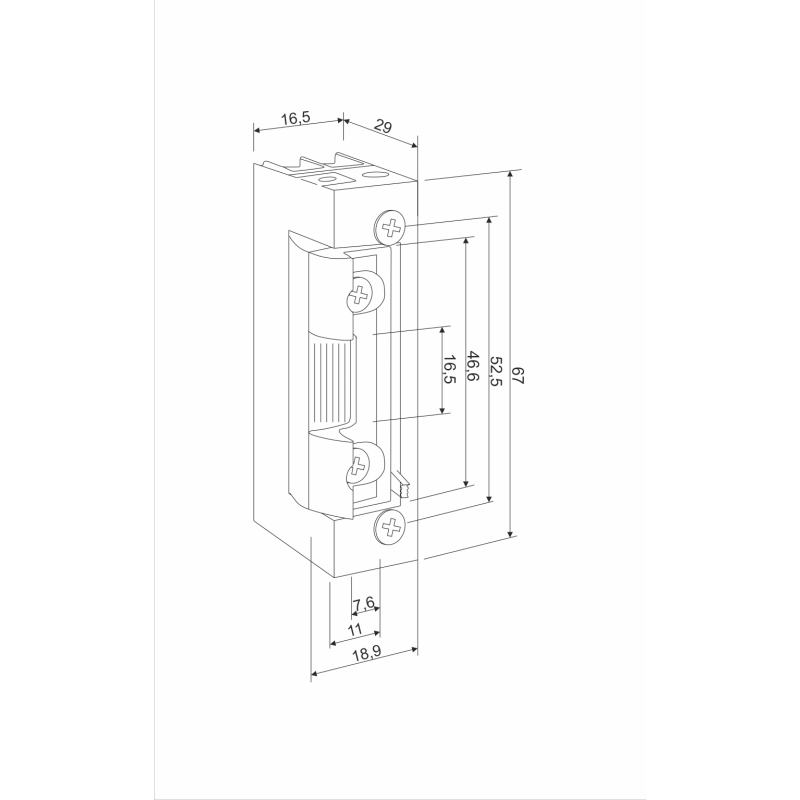

- Height 67 mm, width 16.5 mm, intended for use in narrow profiles
- Fail Secure NC or Fail Safe NO
- Assembling screws distance 52,5 mm.
- Latch adjustment 2 mm.
- 24 hours working models
- Low power consumption
- Durability: 200 000 cycles
- Category of use - class 3 - suitable to public buildings
- Certyficate of Conformity acc. to EN 14846
